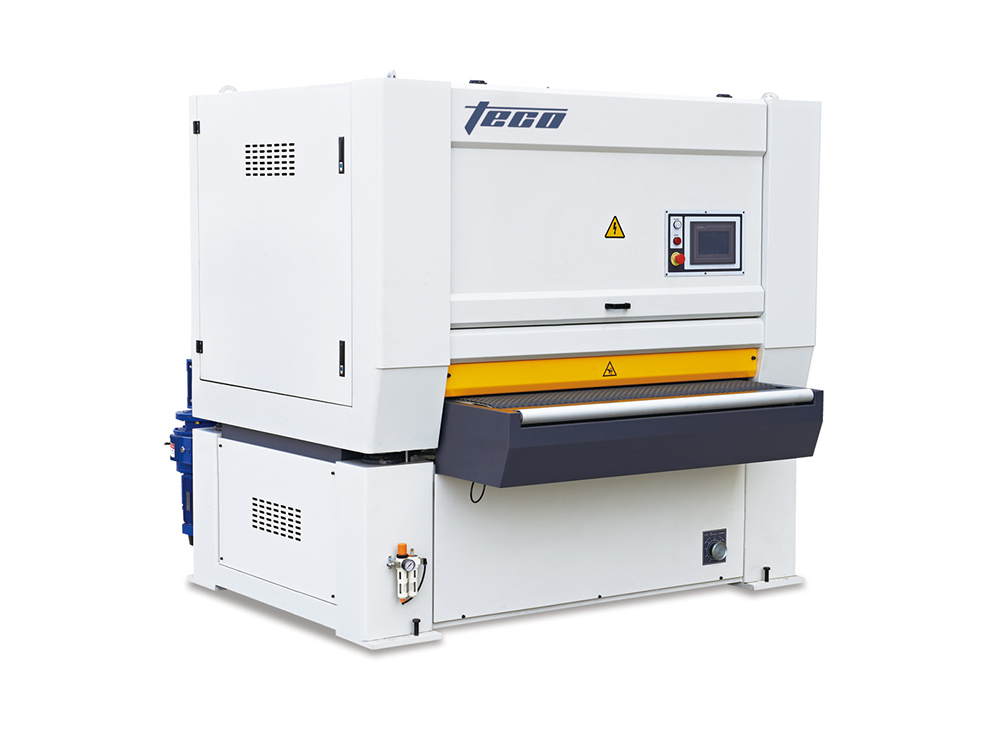

本機型主要用于配合其他設備組成生產線
|
型號 |
TYPE |
MSG630R-R(S) |
MSG1000R-R(S) |
MSG1300R-R(S) |
|
加工寬度 |
Working Width |
40--630mm |
40--1000mm |
40--1300mm |
|
加工厚度 |
Working Thickness |
2--100mm |
2--100mm |
2--100mm |
|
加工板材長度 |
Working Length |
≥270mm |
≥270mm |
≥310mm |
|
送料速度 |
Feed Speed |
5--25m/min變頻調速 |
5--25m/min變頻調速 |
5--25m/min變頻調速 |
|
砂帶尺寸 |
Size of Abrasive Belt |
1900*650mm |
2000*1020mm |
2200*1320mm |
|
電機總功率 |
Total Motor Power |
10.2KW |
17.2KW |
26KW |
|
工作氣壓 |
Working Air Perssure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
|
工作電壓 |
Working Voltage |
380V 50HZ |
380V 50HZ |
380V 50HZ |
|
吸塵風速 |
Speed Of Suckeed Air |
8200m3/h |
8200m3/h |
8200m3/h |
